Technical & Material Properties

• Color: RAL 9003, RAL 3003, RAL 3020, RAL 5005, RAL 5015, RAL 5021, RAL 1018, RAL  2004, RAL 9006, RAL 9007, RAL 6020, RAL 6005, RAL 8017, etc.

• Thickness: 0.25–1.20 mm; Width: 800–1250 mm.

• Coating Layers:

  • Primer coating (5–7 μm)

  • Printed decorative layer (UV or solvent-based inks)

  • Transparent topcoat (polyester or PVDF, 15–25 μm)

• Pattern Options: Marble, wood grain, stone, floral, abstract designs.

• Adhesion & Durability:

  • Cross-cut adhesion: Grade 0 (ISO 2409)

  • UV resistance: ≥ 1,000 hours QUV-B test with ΔE ≤ 5

  • Scratch resistance: ≥ 2H pencil hardness

• Weight Tolerance: ± 3% of nominal weight.




Applications & Advantages

• Applications:

  • Interior decoration panels for walls, ceilings, and partitions

  • Signage boards, exhibition panels, advertising displays

  • Furniture surface cladding

  • Elevator cabin panels and retail space decoration

• Advantages:

  • High-definition, color-accurate printing for realistic visual effects

  • Long-lasting color stability in both indoor and outdoor use

  • Lightweight compared to ceramic or stone alternatives

  • Easy installation, cleaning, and replacement

• Example Case: Marble-pattern color picture tablets used in a shopping mall wall system reduced installation time by 40% compared to natural marble, with a similar visual effect.




 Manufacturing Process & Standards

• Process:

  1. Base steel preparation (galvanized or galvalume sheet)

  2. Cleaning and primer coating

  3. Printing of decorative pattern via offset, gravure, or digital printing

  4. Application of protective topcoat

  5. Baking and curing at 200–250°C

  6. Surface inspection and cutting to size

• Standards: GB/T 12754 (prepainted steel), ISO 2409 (adhesion), ASTM D3363 (hardness).

• Quality Control: Gloss measurement, color difference (ΔE) testing, impact resistance, humidity chamber testing.

• Packaging: Stacked sheets separated with protective film, strapped, and shrink-wrapped for moisture protection.

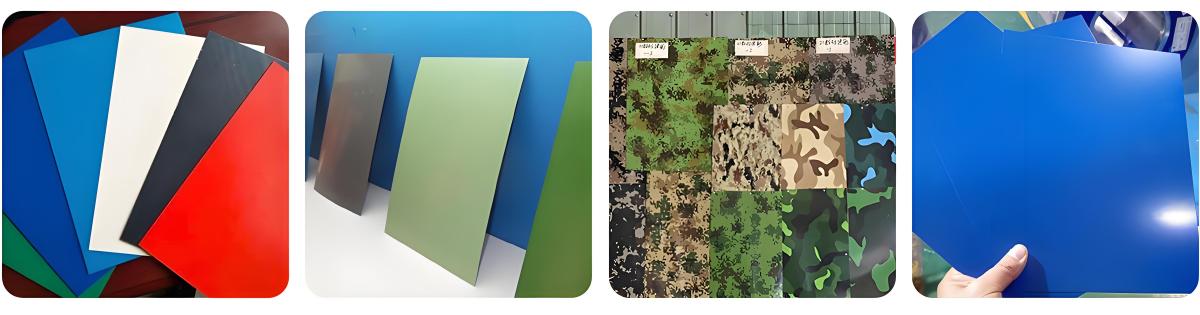

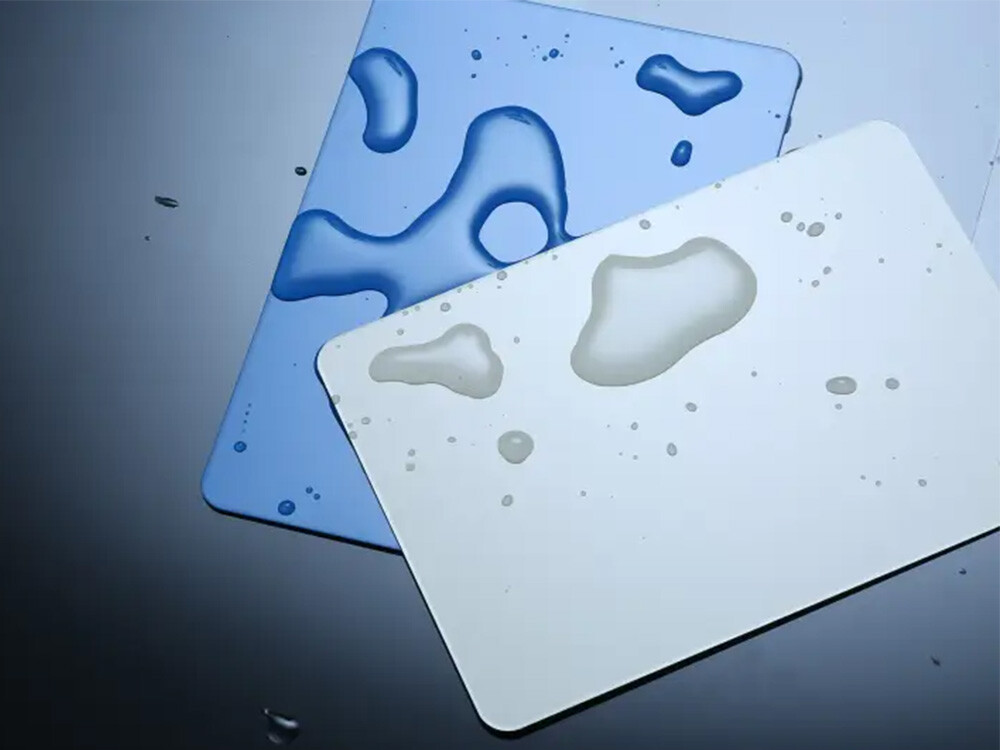

Product Real Shot

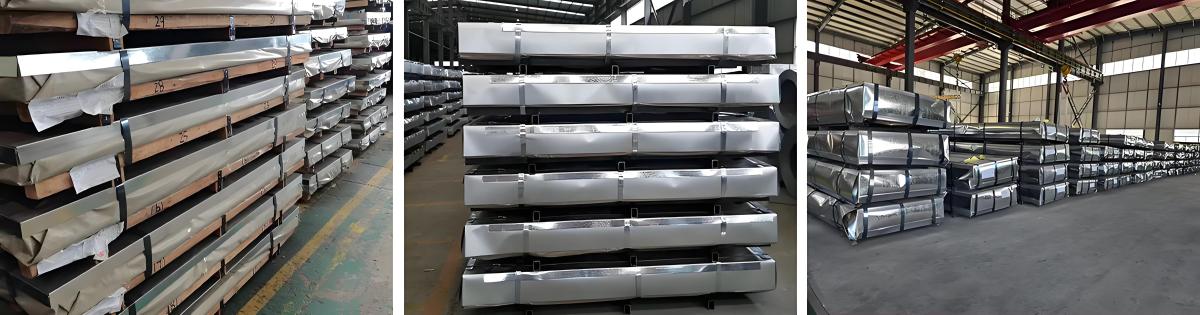

Packaging and Shipping

FAQ

Q1: What product information must I provide before making a purchase?
A: Please provide the grade, width, thickness, surface treatment requirements, and the quantities you need.

Q2: What about product pricing information?
A: Prices may vary due to fluctuations in raw material costs.

Q3: Is it possible to send samples?
A: Yes, we offer free samples with express shipping worldwide.

Q4: Do you offer a service for customized products?
A: Yes, we can supply according to your specific requirements.

Q5: Can I visit you in person?
A: Customers from all over the world are welcome to meet with us.

Q6: Can you assist me in importing steel products for the first time?
A: Yes, we can provide support through our experienced shipping agents.
